You can specify filters with the conversation-retriever to locate and retrieve only the Conversation data that is of interest to you. The API uses a powerful filtering mechanism that supports the creation of multiple, hierarchical filter groups, as shown below.

Filters are defined in the Body of the start-conversations-export call. For example:

{
  "tenant_id": "9b450840-de4a-4943-90e3-4e8c085f038a",
  "environment": "Dev",
  "page_size": 500,
  "fields": [
    "CONVERSATION_FIELD_START_TIMESTAMP",
    "CONVERSATION_FIELD_END_TIMESTAMP"
  ],
  "group_filter": {
    "left_filter": {
      "field": "CONVERSATION_FIELD_START_TIMESTAMP",
      "operator": "CONVERSATION_FILTER_OPERATOR_GREATER_THAN_OR_EQUAL",
      "timestamp_value": {
        "seconds": 1704096000,
        "nanos": 0
      }
    },
    "operator": "CONVERSATION_LOGICAL_OPERATOR_AND",
    "right_filter": {
      "field": "CONVERSATION_FIELD_END_TIMESTAMP",
      "operator": "CONVERSATION_FILTER_OPERATOR_LESS_THAN_OR_EQUAL",
      "timestamp_value": {
        "seconds": 1767081600,
        "nanos": 0
      }
    }
  },
  "order_by": [{
    "field": "CONVERSATION_FIELD_CONVERSATION_ID",
    "direction": "CONVERSATION_ORDER_DIRECTION_DESC"
  }]

}

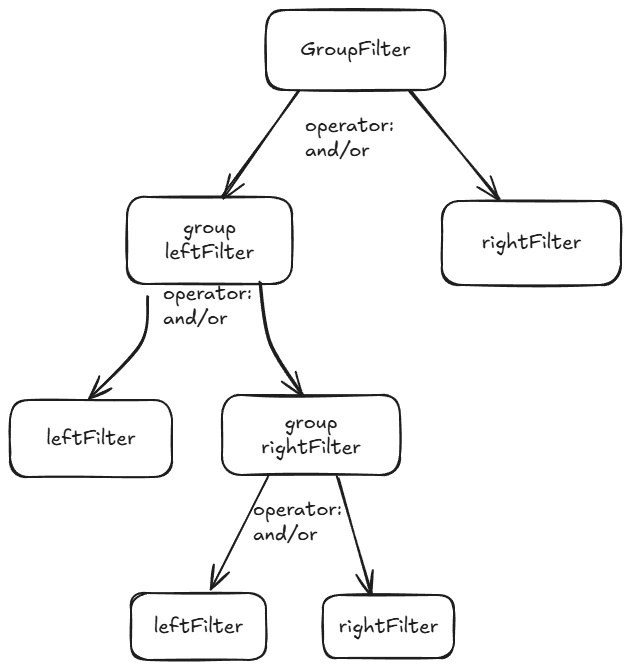

The filtering mechanism is depicted above as a binary tree. You can create a simple single filter (e.g., leftFilter) or build more complex filters by specifying two separate filters (e.g., leftFilter and rightFilter) and applying an AND/OR conditional operator between them. Each filter can itself be the parent of an additional binary subtree, enabling very powerful searches.

Example Filter Details

The Body code example above shows how to compile data between two specified dates, where:

"operator": "CONVERSATION_LOGICAL_OPERATOR_AND"

"left_filter": {
  "field": "CONVERSATION_FIELD_START_TIMESTAMP",
  "operator": "CONVERSATION_FILTER_OPERATOR_GREATER_THAN_OR_EQUAL",
  "timestamp_value": {
    "seconds": 1704096000,
    "nanos": 0
  }

"right_filter": {
  "field": "CONVERSATION_FIELD_END_TIMESTAMP",
  "operator": "CONVERSATION_FILTER_OPERATOR_LESS_THAN_OR_EQUAL",
  "timestamp_value": {
    "seconds": 1767081600,
    "nanos": 0
  }

  "timestamp_value": {
    "seconds": 1767081600,
    "nanos": 0
  }

A filter can be applied to the following Conversation Service fields:

A filter can use any of the following search operators, based on the data type of its Conversation Service field:

Retrieved Conversation Service data sort order can be specified according to a specified field:

Additional Filter Examples

Examples of common Conversation data compilation filters are provided below.

"left_filter": {
  "field": "CONVERSATION_FIELD_PARTICIPANT_ANI",
  "operator": "CONVERSATION_FILTER_OPERATOR_CONTAINS",
  "string_value": "8090909099"
}

"left_filter": {
  "field": "CONVERSATION_FIELD_STATE_STATE",
  "operator": "CONVERSATION_FILTER_OPERATOR_CONTAINS",
  "string_value": "CONVERSATION_STATE_FINISHED"
}

"left_filter": {
     "field": "CONVERSATION_FIELD_PARTICIPANT_ID",
      "operator": "CONVERSATION_FILTER_OPERATOR_CONTAINS",
      "string_value": "18"
}

 "left_filter": {
   "field": "CONVERSATION_FIELD_APPLICATION_ID",
   "operator": "CONVERSATION_FILTER_OPERATOR_CONTAINS",
   "string_value": "576c27f3-444d-4abf-9fa1-61d55e96c590"
 }

This method initiates the Conversation Service data compilation according to filters specified in the request body. Upon successful initiation, this call returns a unique compilation identifier that will be used in subsequent calls.

Depending on the filters specified and the amount of data to compile, the call may take some time to execute on the server. For this reason, the API executes asynchronously. Subsequent methods are used to check its status and download its results.

URL Syntax and Example

http(s)://[url-of-host-cluster]/conversations-retriever/export-conversations/start-conversations-export?environment=[relevant-environment]

https://xconsole.us.cloud.dcmtelco.com/conversations-retriever/export-conversations/start-conversations-export?environment=dev

Specific URI Fields

HTTP Method

POST

HTTP Headers

Content-Type: application/json
Application-Key: <public API service application Key>
Authorization: <bearer token>

HTTP Body

The Body specifies the filter that will be submitted for the compilation. For detailed filter use cases and examples, see the section Filtering, above.

{
  "tenant_id": "<tenant-unique-id>",
  "environment": "<relevant-environment>",
  "page_size": 500,
  "output_format":"JSON",
  "fields": [
       "CONVERSATION_FIELD_START_TIMESTAMP",
        "CONVERSATION_FIELD_END_TIMESTAMP"
   ],
"group_filter": {
  "left_filter": {
    "field": "CONVERSATION_FIELD_START_TIMESTAMP",
    "operator": "CONVERSATION_FILTER_OPERATOR_GREATER_THAN_OR_EQUAL",
    "timestamp_value": {
    "seconds": 1704096000,
      "nanos": 0
    }
 },
  "operator": "CONVERSATION_LOGICAL_OPERATOR_AND",
  "right_filter": {
      "field": "CONVERSATION_FIELD_END_TIMESTAMP",
      "operator": "CONVERSATION_FILTER_OPERATOR_LESS_THAN_OR_EQUAL",
      "timestamp_value": {
       "seconds": 1767081600,
        "nanos": 0
         }
}
  },
  "order_by": [
    {
      "field": "CONVERSATION_FIELD_CONVERSATION_ID",
      "direction": "CONVERSATION_ORDER_DIRECTION_DESC"
    }
  ]
}

Sample Response

{
  62g9c83d-6q09-7k4l-2b9m-8p3s1g5h56e2
}

On successful execution the method will return the unique compilation ID that has been assigned to the requested operation.

This compilation ID is needed to call subsequent methods that monitor the compilation status and then download the compilation results.

This method enables you to monitor the status of a requested Conversation Service data compilation that is already running.

The method requires the unique compilation ID that is returned after successful initiation of a compilation request.

URL Syntax and Example

http(s)://[url-of-host-cluster]/conversations-retriever/export-conversations/export-status/[unique-compilation-ID]?environment=[relevant-environment]

https://xconsole.us.cloud.dcmtelco.com/conversations-retriever/export-conversations/export-status/62g9c83d-6q09-7k4l-2b9m-8p3s1g5h56e2?environment=dev

Specific URI Fields

HTTP Method

GET

HTTP Headers

Content-Type: application/json
Application-Key: <public API service application Key>
Authorization: <bearer token>

HTTP Body

None

Sample Response

"COMPLETED"

On successful execution, the method returns the current status of the requested compilation operation.

Available statuses are:

When the response status shows Completed, you can download the requested compilation to your local device using the download-conversations API call.

This method saves the requested Conversation Service data compilation as a ZIP-formatted file to your local device. It's execution will succeed only after the export-status method returns the response Completed.

The method requires the unique compilation ID of a compilation request.

URL Syntax and Example

http(s)://[url-of-host-cluster]/conversations-retriever/export-conversations/download-conversations/[unique-compilation-ID]?environment=[relevant-environment]

https://xconsole.us.cloud.dcmtelco.com/conversations-retriever/export-conversations/download-conversations/62g9c83d-6q09-7k4l-2b9m-8p3s1g5h56e2?environment=dev

Specific URI Fields

HTTP Method

GET

HTTP Headers

Content-Type: application/json
Application-Key: <public API service application Key>
Authorization: <bearer token>

HTTP Body

None

Sample Response

On successful execution, the method will download a ZIP file containing the requested compilation to the specified location on the local device.
